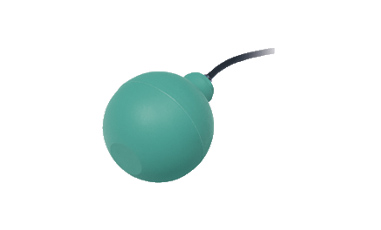

LFL2-BK-U-PUR5-EMS 浮動開關現貨供應

???????浮動開關LFL2-BK-U-PUR5-EMS，球設計：高浮力，弗熙堡從事自動化產品經銷多年，一切從客戶實際需求出發，備有大量現貨，竭誠為您服務，您值得選擇！021-51601058

好評系數：

立即詢價

倍加福浮動開關LFL2-BK-U-PUR5-EMS現貨供應

產品特性

? 開關元件：微型開關，無汞

? 液體上限值檢測

? 球設計：高浮力

Electrical specifications
Contact loading		250 V AC/3 A; 150 V DC/0.25 A resistive load; 60 V DC/1 A resistive load
Rated insulation voltage		300 V
Pulse withstand voltage		4 kV
Electrical life		≥ 5 x 10⁴ switching cycles
Directive conformity
Low voltage
	Directive 2014/35/EU	EN 60947-5-1:2004 + Cor.:2005 + A1:2009
Conformity
Degree of protection		IEC 60529:2001
Application
Description		microswitch with switching ball, change-over contact
Function and system design
Equipment architecture		This device may be used with any sequential circuit, as long as the circuit can support the electrical circuit values of the switching elements.
Operating conditions
Installation conditions
	Installation instructions	range of application and minimum length between mounting and float: ≥ 100 mm (4 inch), preferred for fuels, heating oils, oily fluids mounting: The float switch is mounted by means of a counter weight or rods (e. g. float switch combination) from the top. The pivot of the cable should always be horizontal.
Process conditions
	Process pressure (static pressure)	≤ 2 bar (29 psi) at 20 °C (68 °F)
	Density	≥ 0.6 g/cm³
Ambient conditions
Ambient temperature		5 ... 70 °C (41 ... 158 °F)
Storage temperature		-25 ... 70 °C (-13 ... 158 °F)
Altitude		≤ 2000 m above MSL
Mechanical specifications
Degree of protection		IP68
Cable
	Length	5 m
Mechanical construction
Material		float: PP (Polypropylene) cable: PUR, highly flexible (3 x 0.50 mm²)
Switching point		switch angle, measured against the horizontal: - upper switch point +25° ±10° - lower switch point -14° ±10°
General information
Supplementary information		Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable.

弗熙堡自動化自成立以來“以市場為導向，客戶需求為依據，信譽和質量為生命”，的經營理念，謁誠為廣大客戶提供工業自動化產品；由于產品眾多，限于篇幅，無法一一展示，如有未展示自動化產品需要，盡請來電咨詢，電話： 021-51601058 手機：189-6426-6865

產品可應用于

弗熙堡自動化您值得選擇！

弗熙堡自動化全體員工誠摯期待您的蒞臨采購咨詢電話：021-51601058 189-6426-6865
